Thomas Rear Engine Systems
1990 & Later With Turbo Cummins 6BTA, 8.3 Liter and 3116 Diesel Engines
1994-98? With Turbo Cummins 8.3 Liter

Cummins 6BTA
XTH59X13
Cummins 6CTA w/o Pyrometer
XTHCTACX
Cat 3116
XTH3116X7
Cummins 8.3
XTH83X10


MVP with Caterpillar 3116 Turbo Diesel - Rear Mounted


Thomas Saf-T-Liner Pusher (Rear Engine) with 8.2 Liter Turbo Diesel and Rear Exhaust Exit
Thomas Saf-T-Liner Pusher (Rear Engine) with 8.2 Liter Turbo Diesel with Street Side Exhaust
Thomas Saf-T-Liner Pusher (Rear Engine) with 6V92 Diesel Engine with Rear Exit Exhuast
Thomas Saf-T-Liner RE with Caterpillar 3208 Naturally Aspirated Diesel Engine - Rear Exit
Thomas Saf-T-Liner RE with Caterpillar 3208 Naturally Aspirated Diesel Engine - Exits to Street Side
Thomas Saf-T-Liner RE with Caterpillar 3208 Turbo Diesel - Rear Exit
Thomas Saf-T-Liner RE with Caterpillar 3208 Turbo Diesel - Exits to Street Side
Thomas Pusher 3126 Caterpillar or 8.3 Liter Cummins 1998 & Later
Engine Pipe
Flex Tube
Intermediate Pipe
Muffler
Tailpipe
XTHP83T98 - 3126 Cat
XFLX400-12
XT400-6
XTH4M3
XTH4TD2
XTHP83TP2 - 8.3 Cummins

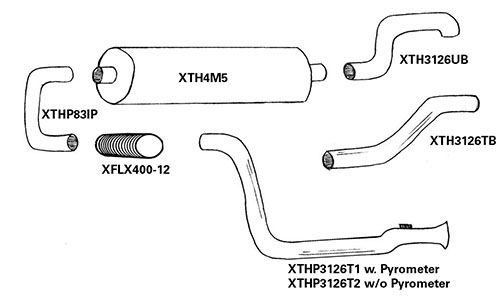

Thomas Pusher 1998 & Up with Caterpillar 3126 Diesel
Engine Pipe
Flex Tube
Intermediate Pipe
Muffler
Tailpipe
XTHP3126T1 - With Pyrometer
XFLX400-12
XTHP83IP
XTH4M5
XTH3126VB
XTHP3126T2 - w/o Pyrometer
*Optional - XTH3126TB

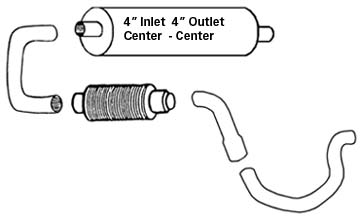

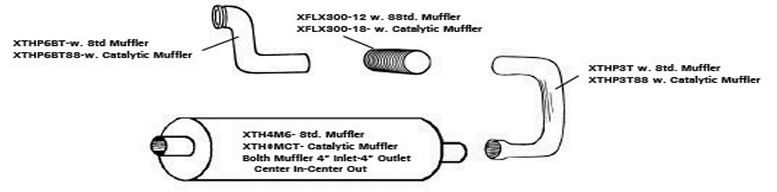

Thomas Pusher B Series Cummins 1996 & Later
Choose 1 System :
Engine Pipe
Flex Tube
Intermediate Pipe
Muffler
Tailpipe
Standard Muffler
XTHP6BT
XFLX300-12
XTHP3T
XTH4M6^
See bottom
Catalytic Muffler
XTHP6BTSS
XFLX300-1S
XTHP3TSS
XTH4MCT^
of page
Thomas Pusher 8.3 Liter Cummins 1996 & Later
Engine Pipe
E. Pipe Connector
Flex Tube
Intermediate Pipe
Muffler
Tailpipe
XTHP83TP
XTHP83T2
XX4FLXB
XTHP83IP
XTH4M2
See Bottom of Page
Thomas Pusher 3116 Caterpillar w/ Catalytic Muffler 1994 & Later
Engine Pipe
Chart # 1
Muffler
Chart # 2
Flex Tube
Tailpipe
XTHP3116T91
XTHP3116IP
XB3116MCS1
XTHP3116RXS
XFLX400-12 or
XTHP3116T1
XX4FLXB (S.S Bellows)
Thomas Pusher - Rear Exit Pipe Options

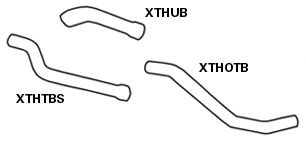

Left Side Exit Pipes

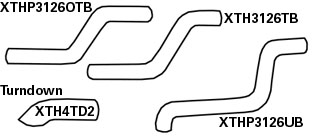

Right Side Exit Pipes

^Mufflers on This Page
Type
Inlet
Outlet
Inlet
Outlet
XTH4M3
4"
4"
XTH4M4
4"
4"
Offset
Offset
XTH4M5
4"
4"
Center
Center
XTH4M6
4"
4"
Center
Center
XTH4MCT
4"
4"
Center
Center
XTH4M8
4"
4"
Offset
Offset
XTH4M9
Oval
4"
4"
Offset
Offset
XTH4MD6
4"
4"
